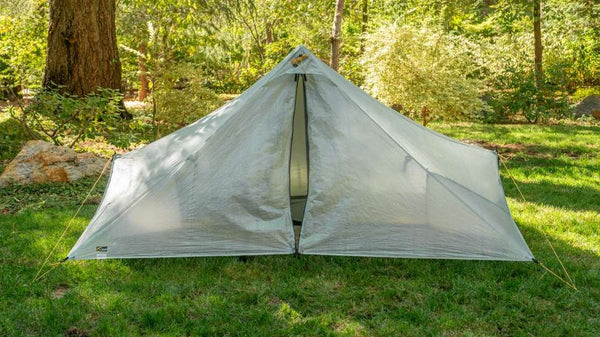

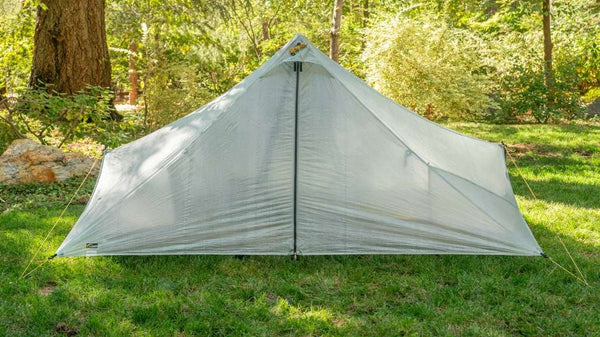

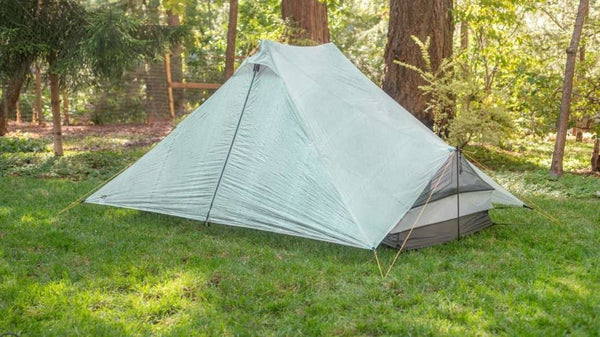

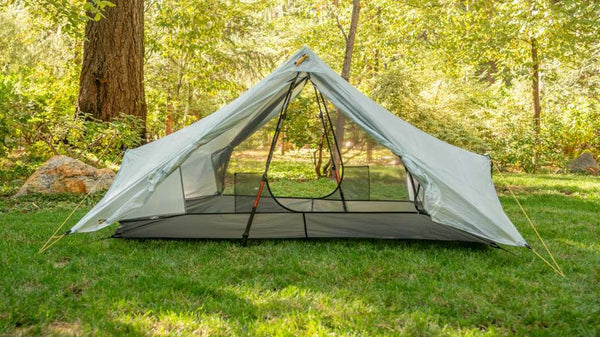

TARPTENT Dipole 1+ Li is made with Dyneema® composite fabric and offers unparalleled interior usable volume – with sit-up and lie-down room for tall people up to 203 cm (6'8") and the longest, widest sleeping pads.
It is ideal for trekking pole users who want the ultimate in low weight, protection and usable interior space. A fast 4-stake, fly-first pitch with guyline-free entry and exit makes it elegant and sturdy, while the reverse-tapered floor gives you room where you actually need it. The Dipole 1+ Li fits the confines of any pack and gives you the freedom, security and comfort you want for a wide range of conditions.
Please note: this shelter requires 2 x trekking poles or substitute poles (sold separately), plus 4 additional stakes to use in heavy weather.
Available with a choice of 15D nylon floor or an ultralight 0.96 DCF floor.
Breathable fabric condensation liner for the Dipole 1+ Li available separately.
Package includes:
Dipole 1+ Li tent body, fully corded with apex guylines
Two 53.3 cm (21") foldable Easton® 3.9 carbon fiber struts
Four 20 cm (7.88") DAC J aluminum stakes
Tent Bag
Stake Bag
Materials
Fly material: 0.55oz Dyneema® composite fabric (CT1E.08), rated to over 8,000mm hydrostatic head, made in USA, olive green
Floor material (nylon): 15D quadruple ripstop, silicone and polyether urethane (Sil/PeU) coated nylon 6.6, rated to over 4,000mm hydrostatic head, dark grey
Floor material (DCF option): 0.96oz Dyneema® composite fabric (CT2K.18), rated to over 20,000mm hydrostatic head, olive green

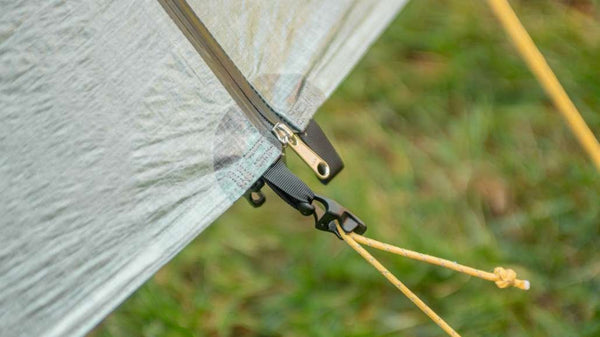

Fly Zippers: YKK #3 Aquaguard waterproof
Mesh: 15D nylon no-see-um mesh
Solid Fabric: Breathable and windproof 10D ripstop nylon

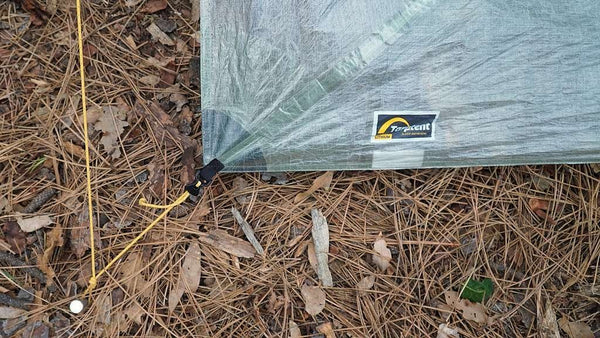

Cording: Tarptent UltraPE
Folding Struts: Easton® 3.9 carbon fiber (7 mm), made in USA
Stakes: Four 20 cm (7.88") DAC J aluminum stakes
Weight
Minimum weight: 665 g (23.45 oz) – DCF 0.96 floor, with struts, without stakes and bags
Typical weight: 751 g (26.5 oz) – nylon floor, with struts, stakes and bags
Tent body (nylon floor): 636 g (22.45 oz)
Tent body (DCF 0.96 floor): 619 g (21.85 oz)
Carbon fiber struts: 46 g (1.6 oz) – pair
Stakes: 62 g (2.2 oz) – four DAC J
Optional condensation liner: 61 g (2.15 oz)
Dimensions
Interior height (adjustable): 112 cm (44")
Floor length: 213 cm (84")
Floor width (reverse tapered): 91 cm (36") at the ends, 71 cm (28") in the middle
Floor area: 1.73 m² (18.67 sq ft)
Vestibule area: 1.78 m² (19.16 sq ft) total; 0.89 m² (9.58 sq ft) per side
Maximum user height: 203 cm (6'8")
Sleeping pad width: up to 71 cm (28"), or wider with pole adjustments

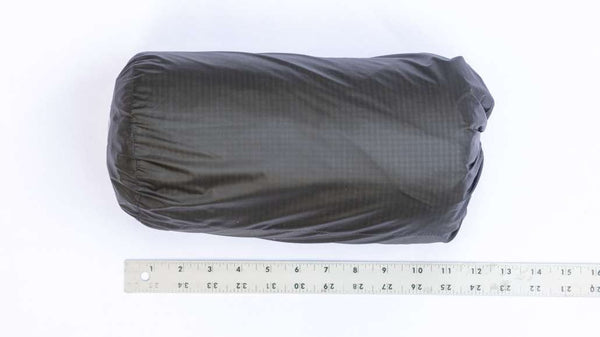

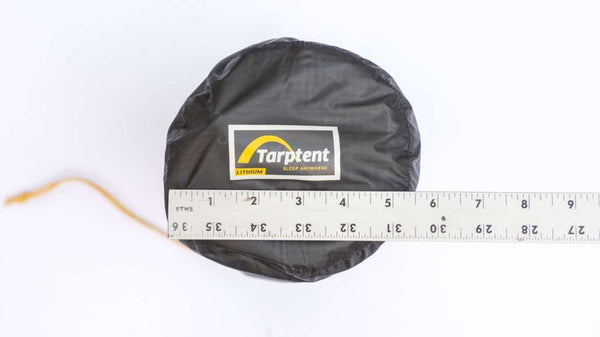

Packed size in bag: 30.5 x 14 cm (12" x 5.5")
Features

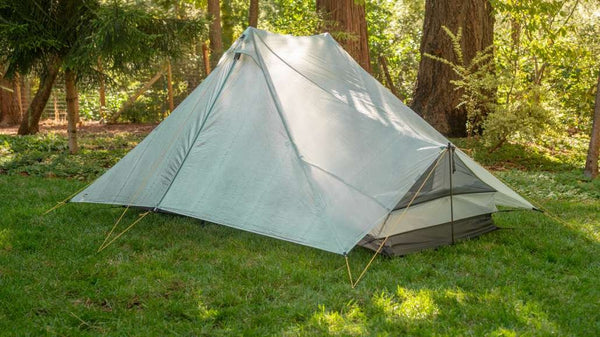

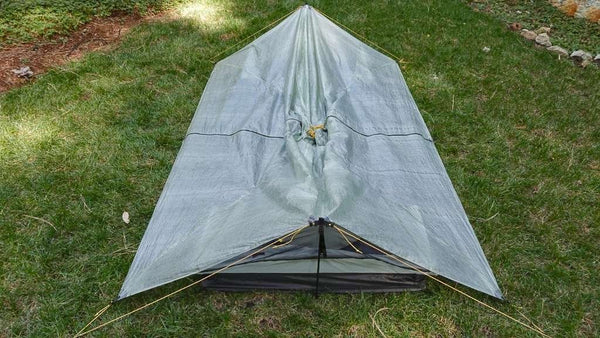

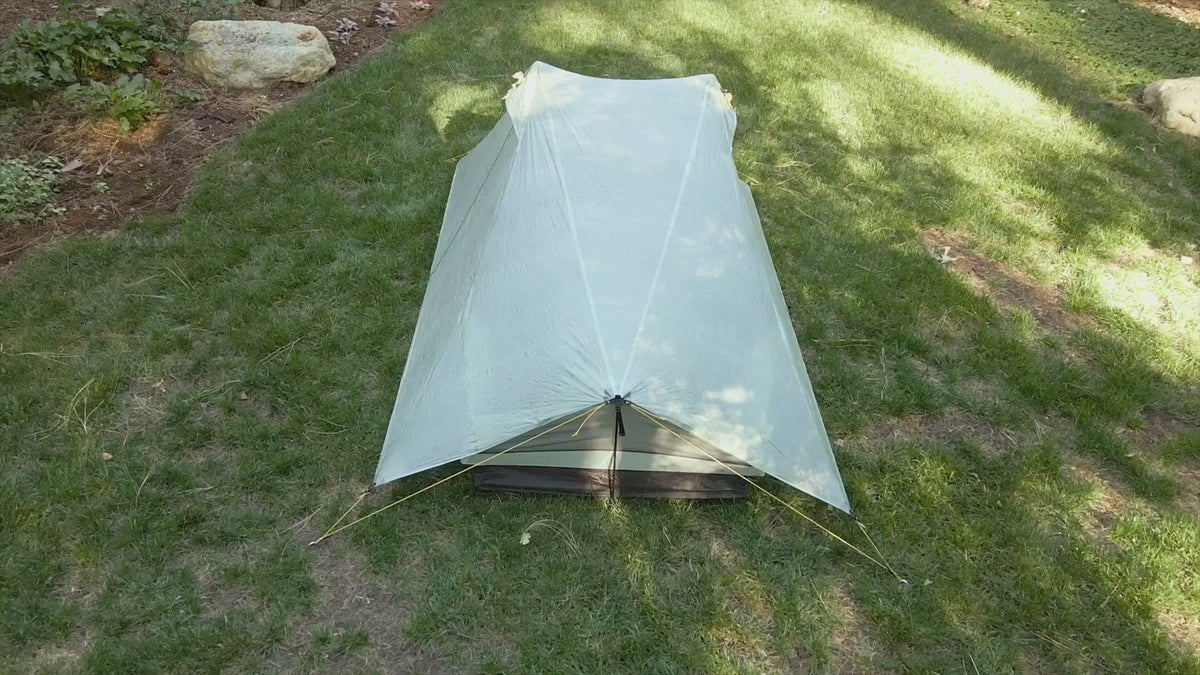

Setup: Fast, easy and strong 4-stake fly-first pitch with a rectangular footprint – pitched in under 2 minutes, with guyline-free entry and exit so there is nothing to trip over at the doors.
Trekking poles: Requires two trekking poles or substitute poles (sold separately). Poles can be oriented tip-up or handle-up with optional adapters and angled to widen the doorways.
Interior space: 112 cm (44") of adjustable headroom and a 213 cm (84") floor accommodate users up to 203 cm (6'8"). The reverse-tapered floor is 91 cm (36") wide at the ends and 71 cm (28") in the middle, giving shoulder and hip room where it matters.

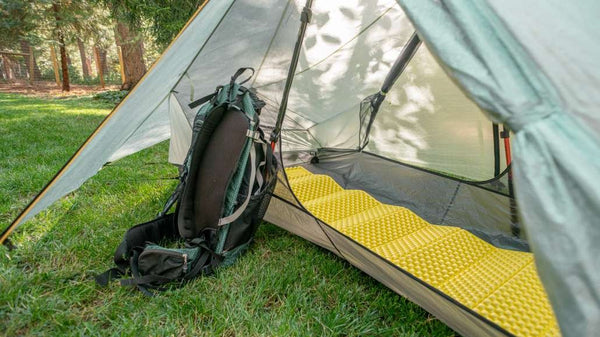

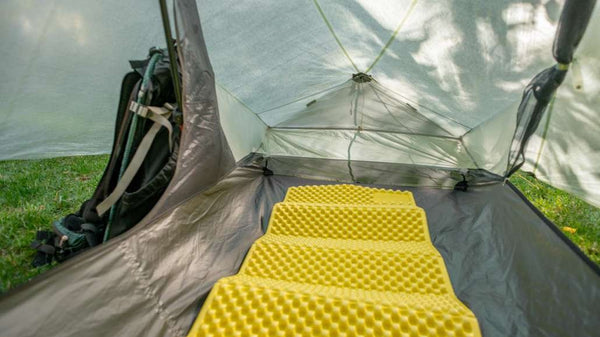

Sleeping pads: Easily fits any length sleeping pad and widths up to 71 cm (28"), or wider with pole adjustments.

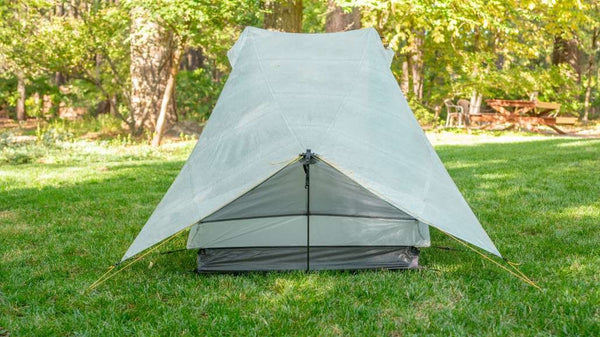

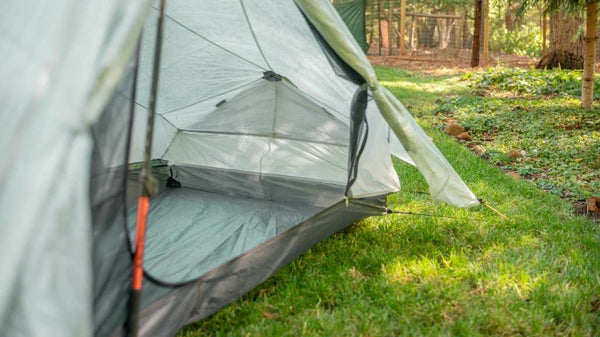

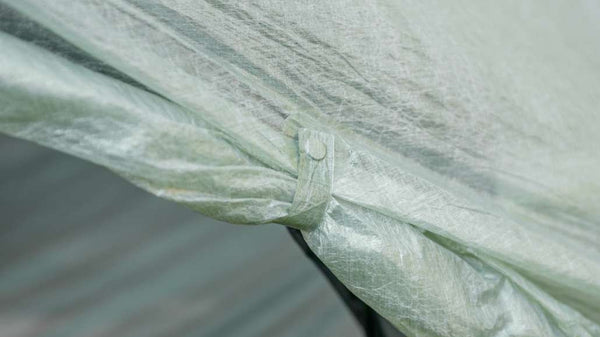

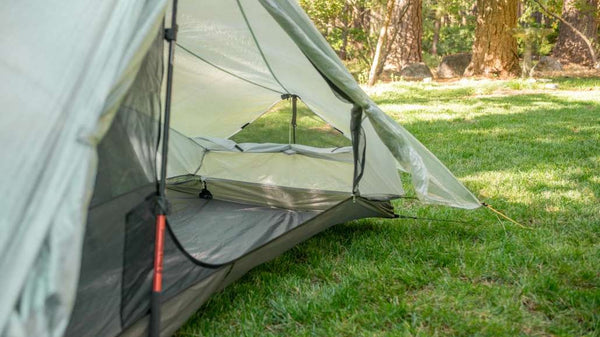

Doors & vestibules: Dual doors and vestibules for easy entry and exit plus 1.78 m² of covered gear storage. Magnetic fly door ties for ease of use and security in wind; vestibules expand with extra stakes (guyline included) and roll fully back while keeping the interior behind the drip line.

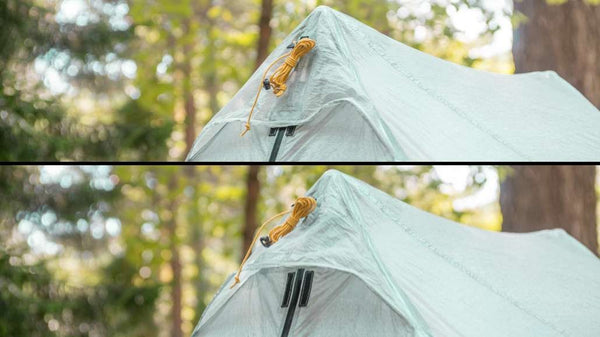

Ventilation: Large and adjustable high and low venting options, plus ambidextrous end vent “windows” with storm flaps and a moldable rim – tunable airflow with full storm protection when needed.

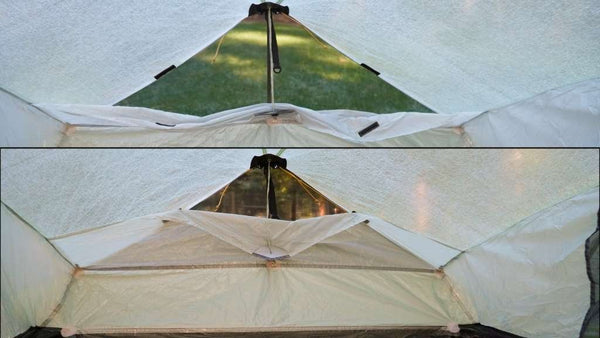

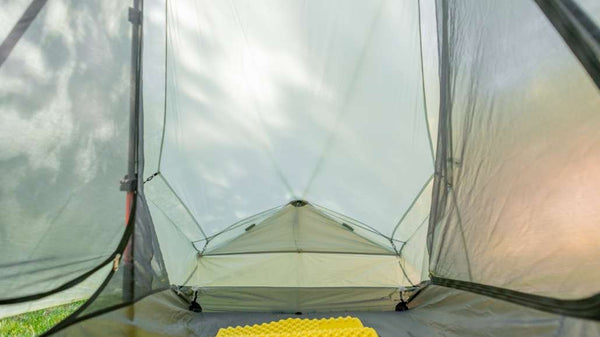

Condensation management: Partial solid interior blocks cold wind while maintaining views and ventilation. Condensation catchers with adjustable tensioning add splash and draft protection, and an optional clip-in liner (61 g) is available; the elastic interior loops double as gear hangers.
Fly fabric: 0.55 oz Dyneema® composite fabric (CT1E.08) rated to over 8,000 mm hydrostatic head, made in the USA, fully factory seam taped with DCF tapes.
Floor options: Choice of 15D quadruple ripstop Sil/PeU nylon 6.6 rated to over 4,000 mm, or an ultralight 0.96 DCF floor (CT2K.18) rated to over 20,000 mm.
Premium components: USA-made Easton® 3.9 carbon fiber folding struts, DAC J aluminum stakes, YKK #3 Aquaguard waterproof zippers and Tarptent UltraPE cording.
Storm performance: Excellent wind performance thanks to the low-drag shape, small panel sizes and balanced tension lines. Steep walls shed snow and small panels minimise snow load potential.
Splash protection: Low fly edge blocks wind and rain splash.
Packability: Packs to 30.5 x 14 cm (12" x 5.5") – under 30.5 cm (12") thanks to easy-to-remove folding struts.
Organisation: Integrated large interior pockets and overhead clips for gear organisation and storage.
